Product details

Frame
Frame

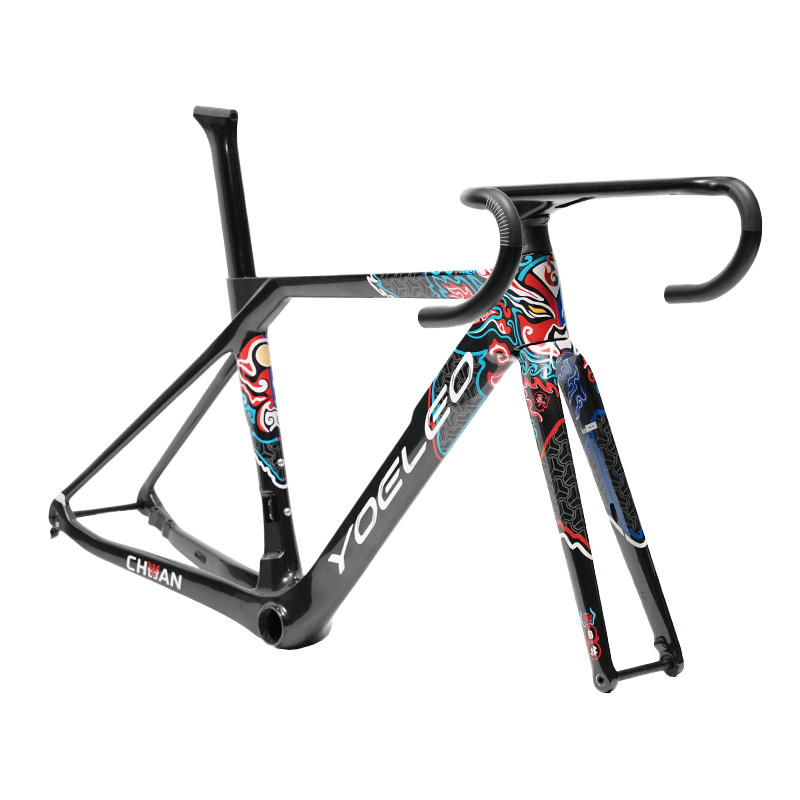

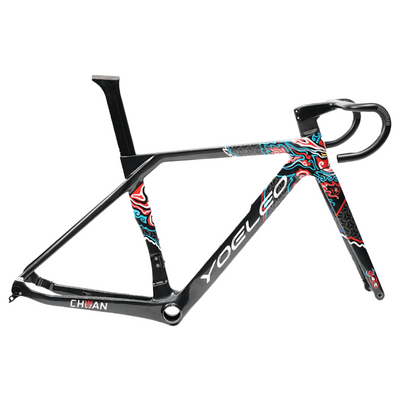

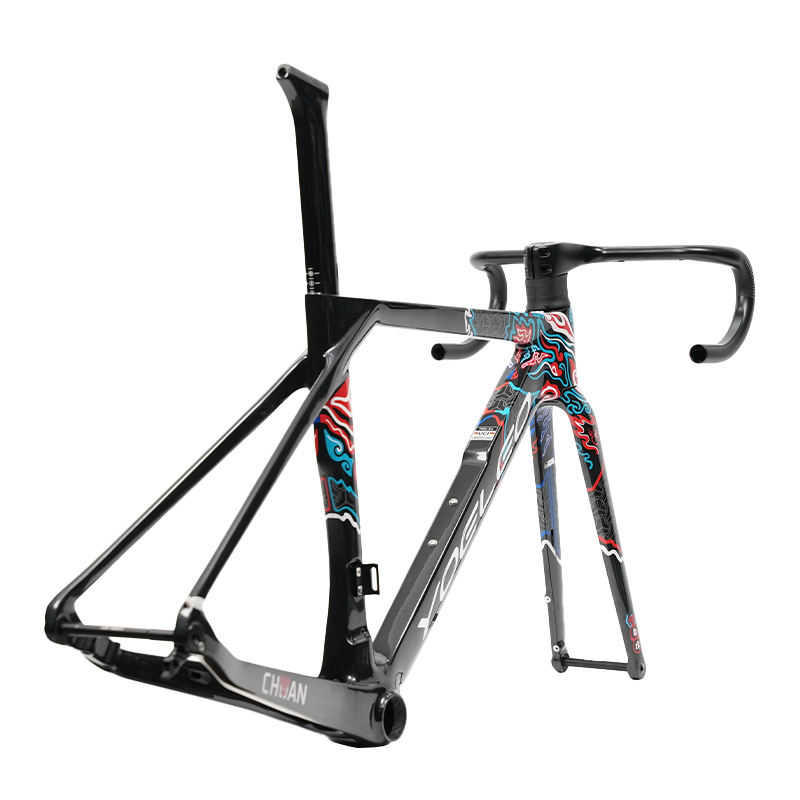

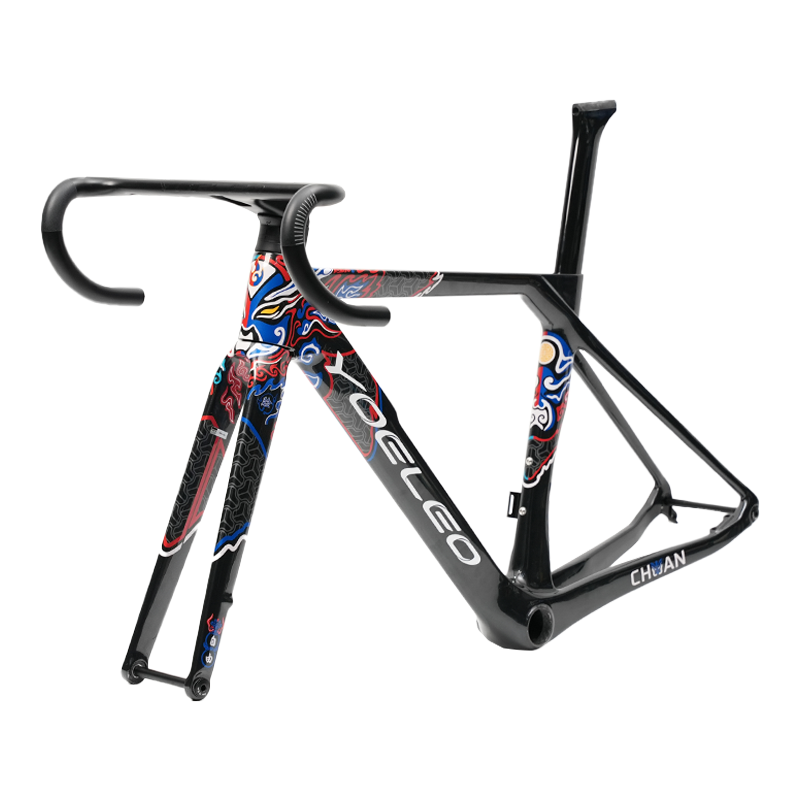

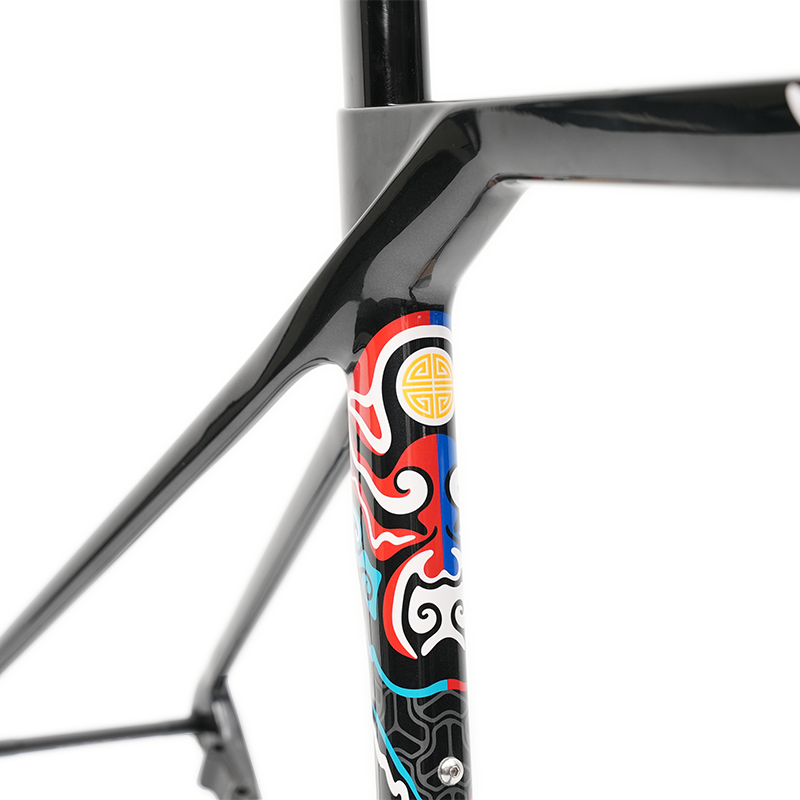

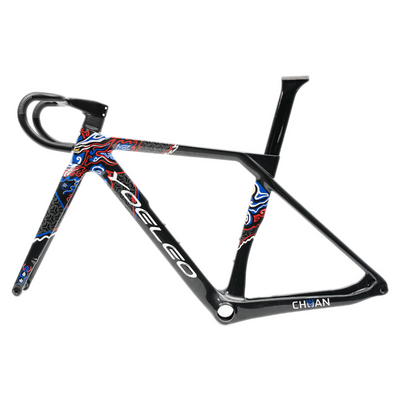

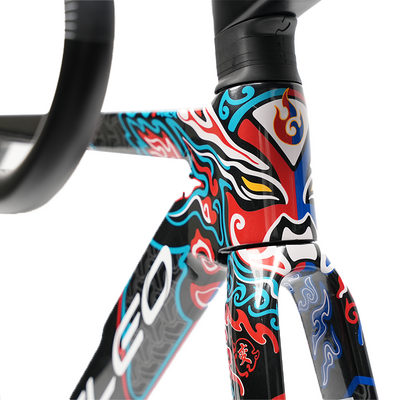

Frameset:Β R12 Frame+Fork+Handlebar+Seatpost
Frame:
Sizes:Β
43cm,47cm,50cm,52cm,54cm,56cm,59cm
Material:Β High Modulus Toray 800 Carbon Fiber

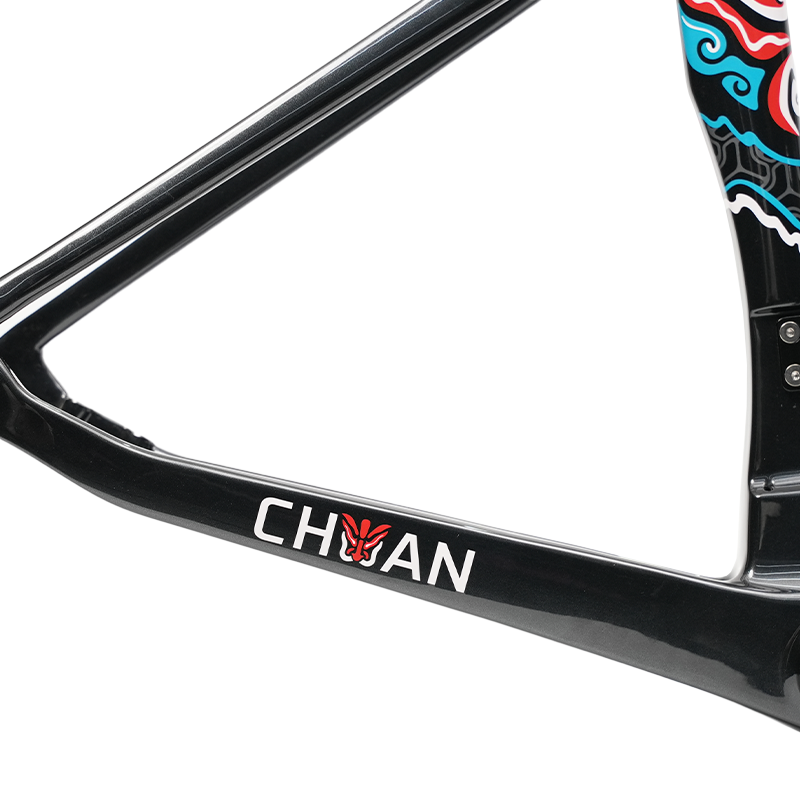

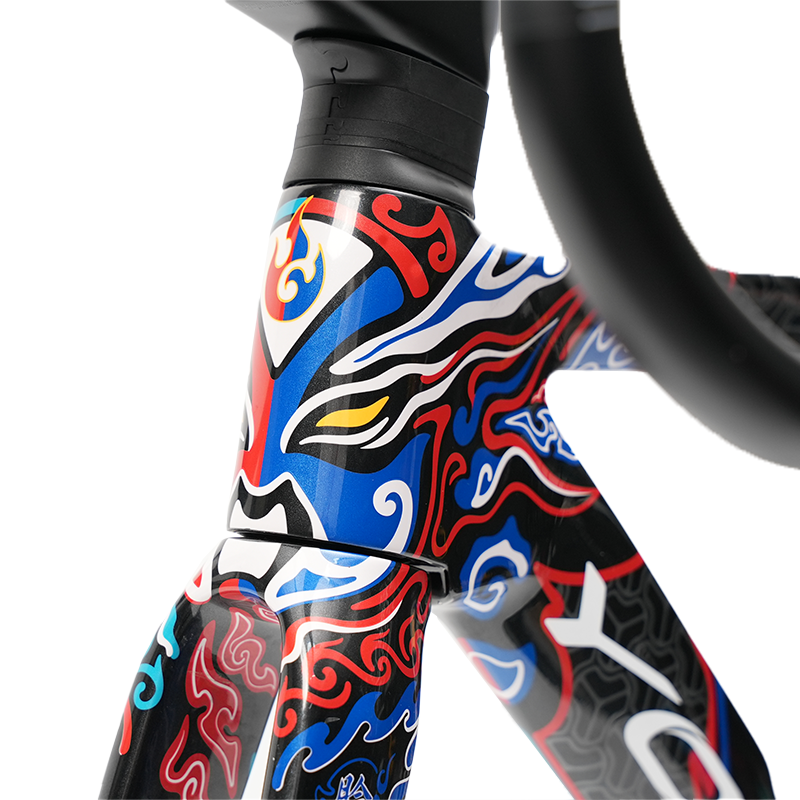

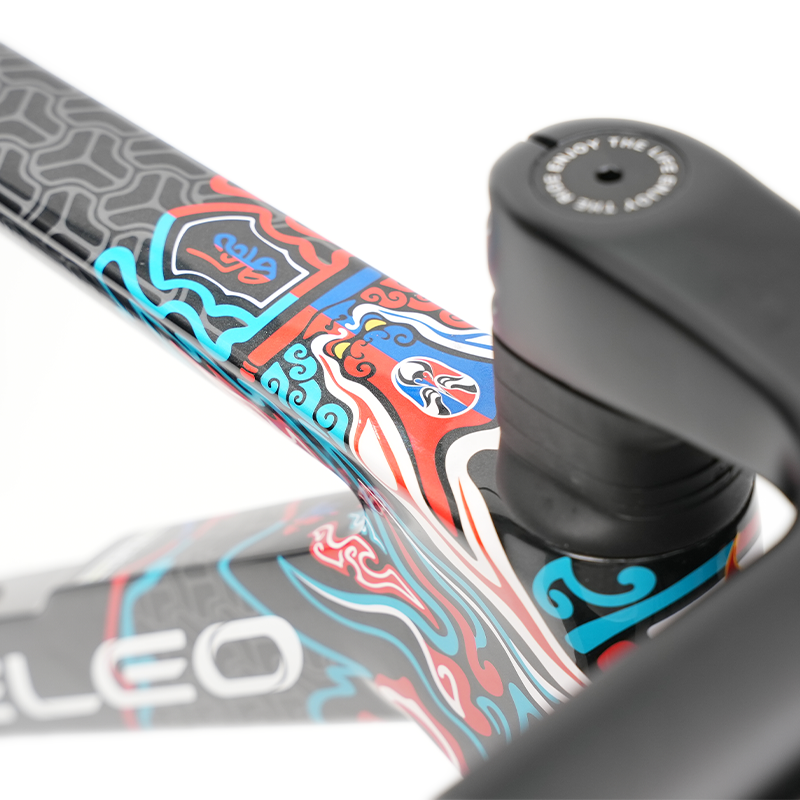

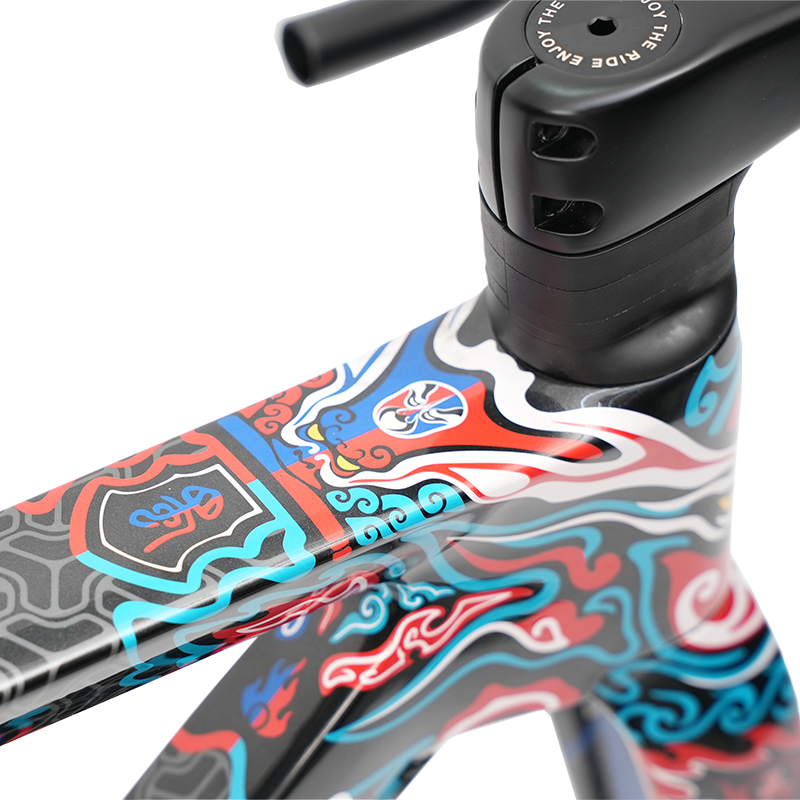

Color:Β Hemidium / Emerald Green / Chuan / Dragon / Custom Painting
Carbon Weave:Β UD
Groupset Compatible:Β Machine and Di2 compatible
BB:Β BB386
Rear Dropout:Β 12*142 Thru Axle
Rear derailleur hanger:Β Replaceable
Headtube:
Β 1-1/2” Straight

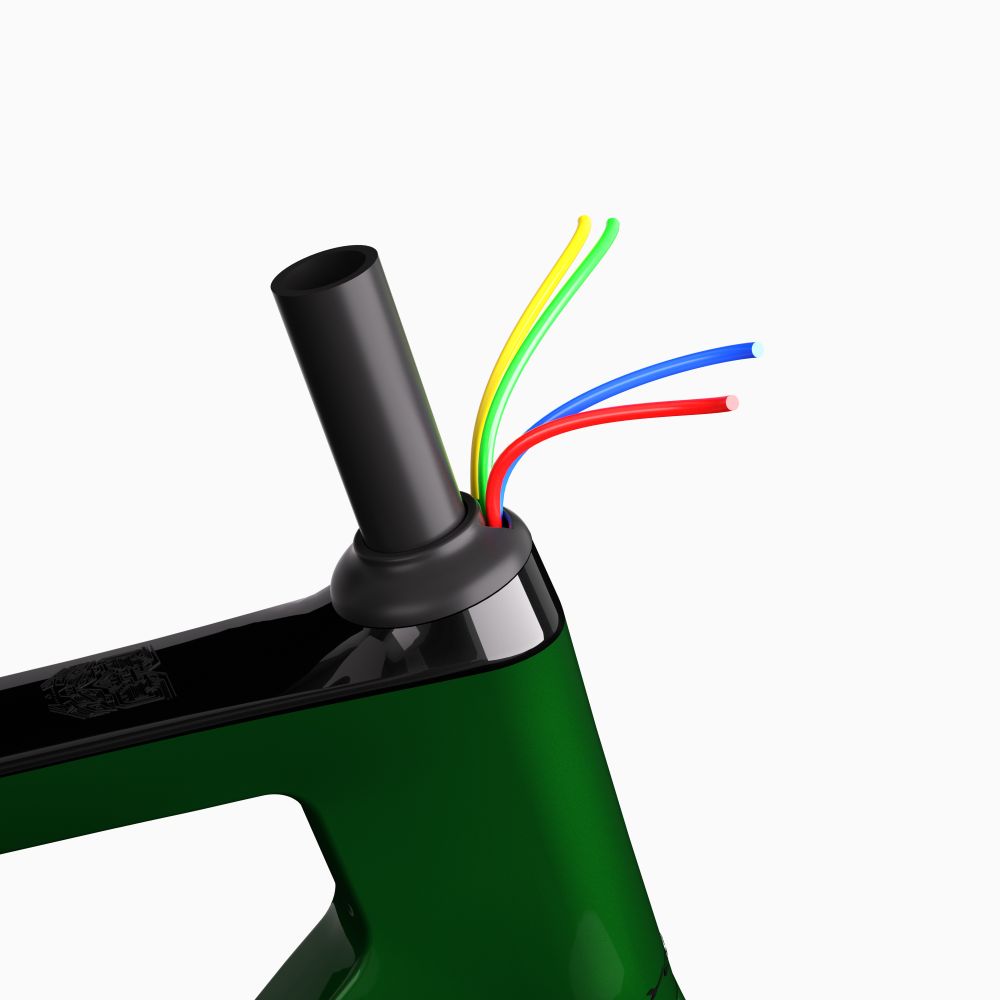

Cable:Β Internal cable

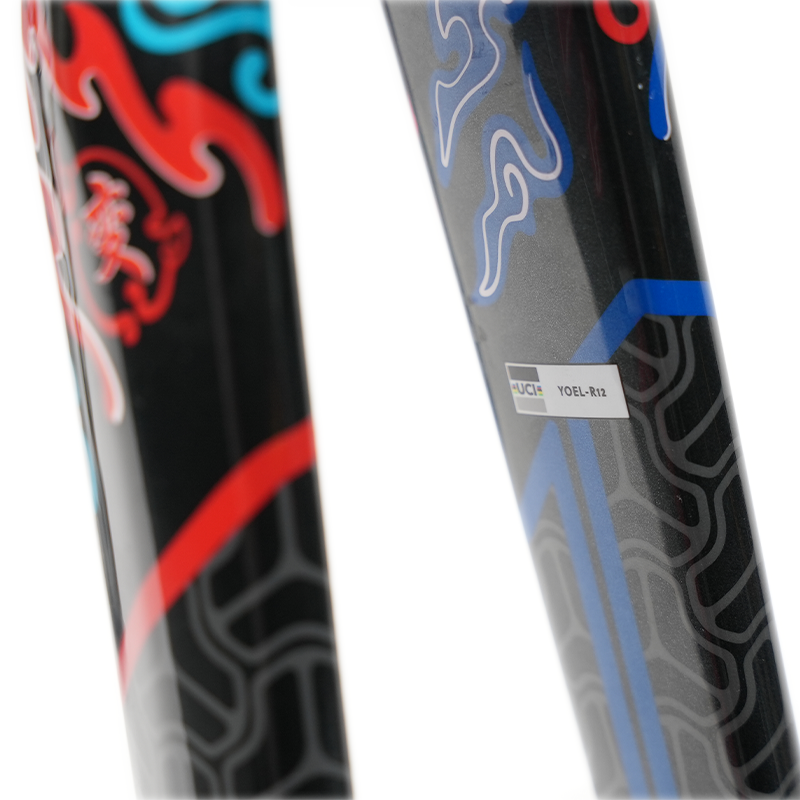

Fork
Fork

Fork:Β Aero Disc Brake Fork,Flat Mount,12*100 Thru Axle
Tapered Steerer Tube:Β 1 1/8" Top, 1 1/2" Crown
Fork Offset: 45˚
Brake:Β Flat Mount Disc Brake
Fork Weight:400+/-10g

Seatpost
Seatpost

R12 Aero seatpost
Slider saddle clamp

Tires Compatibility
Tires Compatibility

32C tires compatible

Handlebar
Handlebar

Optional: H9 | ST1+H11 combo

Handlebar Size: H9:
400mm, 420mm, 440mm
Stem Size:Β 90mm/100mm/110mm/120mm

Handlebar Size: ST1+H11 combo:
360/380/400/420/440mm
Stem Size:Β 90mm/100mm/110mm/120mm

Weight
Weight

Frame Weight:Β HemidiumΒ 1020gΒ (47cm)Β +/-50gEmerald GreenΒ 1030gΒ (47cm)Β +/-50gRawΒ 970gΒ (47cm)Β +/-50gLimited Rider Weight:Β 110KG

Included in the Box

  • Compression Plug*1

  • Compression Ring*1

  • CH9 Computer Holder*1

  • Handlebar Spacer*1

  • Cable Spong*2

  • Saddle Clamp Set*1

  • Front TA Axle*1

  • Rear TA Axle*1

  • Seatpost Clamp*1

  • Headset Bearings*2

  • Compression End Cap*1

  • Front Derailleur Hanger*1

Hear from the Experts

This $1400 Frame Made Western Brands Look Stupid β€” Yoeleo R12 Review

By Hambini

My Yoeleo R12 Is Finished - Dream Build and First Ride

By Patrick Lino

Should You Buy A Yoeleo R12 Carbon Road Bike From China?

By David Arthur

γ‚³γ‚Ήγƒ‘ζœ€εΌ·γƒ­γƒΌγƒ‰γƒγ‚€γ‚―οΌοΌŸ1000kmδΉ—γ£γ¦εˆ†γ‹γ£γŸεΌ±η‚Ήγ¨γ―οΌŸζ­£η›΄γ™γŽγ‚‹ε…¨εŠ›γ‚€γƒ³γƒ—γƒ¬οΌγ€YOELEO R12】

By 【A】Projectみきひと

Yoeleo R12 - Minha nova Bike de Estrada chegou | CafΓ© na Trilha

By CafΓ© na Trilha

Никита Маска ΠΈ ΠžΠ‘Π—ΠžΠ  Yoeleo - ΠšΠΈΡ‚Π°ΠΉΡΠΊΠΈΠΉ ΠΊΠ°Ρ€Π±ΠΎΠ½ΠΎΠ²Ρ‹ΠΉ ΡˆΠΎΡΡΠ΅ΠΉΠ½Ρ‹ΠΉ вСлосипСд

By Anton Stepanov

Aerodynamic Design For Unrivaled Speeds

The R12 boasts a sleek, aerodynamic frame that minimizes drag and maximizes speed. Glide through the air and achieve your personal best on every ride with the R12's streamlined design.

View more

Load video:

Refined Gravel-Optimized Geometry

Slacker headtube angle, longer wheelbase, and a shorter stem come together for better stability and control on rough terrainβ€”without the worry of toe overlap.

AerodynamicsΒ MeetsΒ Comfort

Experience the pinnacle of cycling with the R12, where cutting-edge aerodynamics and unparalleled comfort converge. a sleek carbon fiber frame and optimized carbon layout, the R12 offers a smooth and responsive ride. Whether sprinting or enduring long distances, it delivers an exhilarating yet comfortable journey, redefining your ride every pedal of the way.

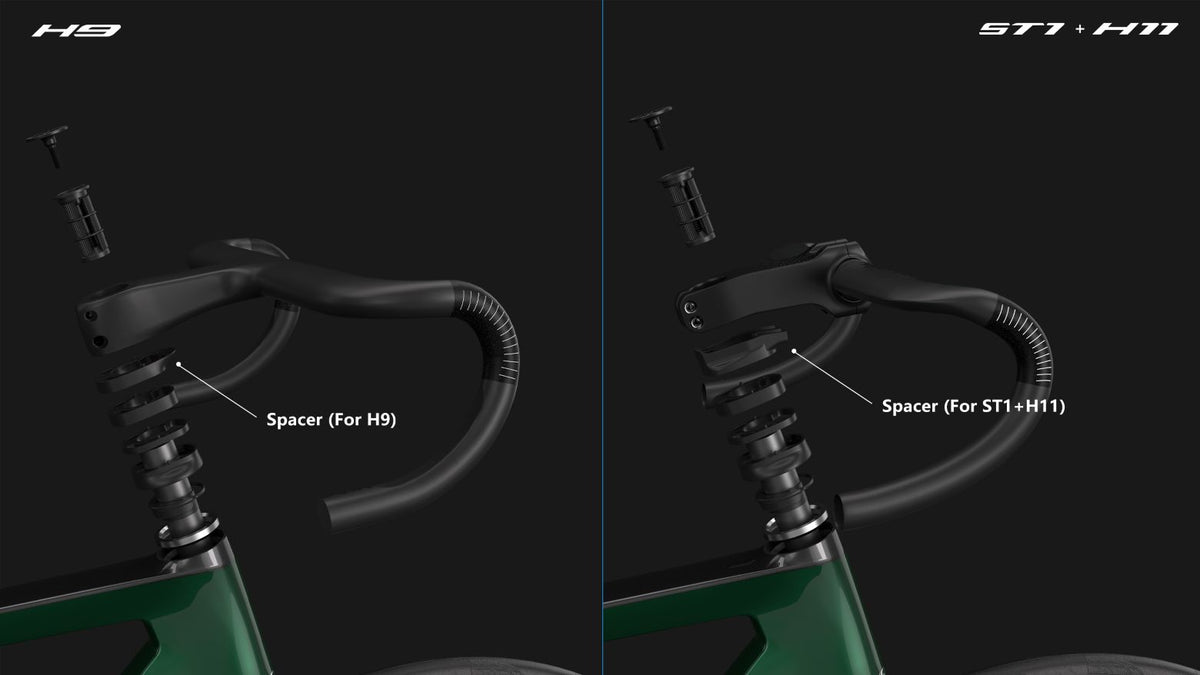

Integrated or Stem & Bar Combo

Ride with H9, easy to install and hassle-free integrated handlebar, or with H11 and ST1, easy to adjust bar and stem combination that allows for freedom.

Handlebar Options

H9 Integrated

ST1+H11 Combo

H21 Integrated

Without Handlebar

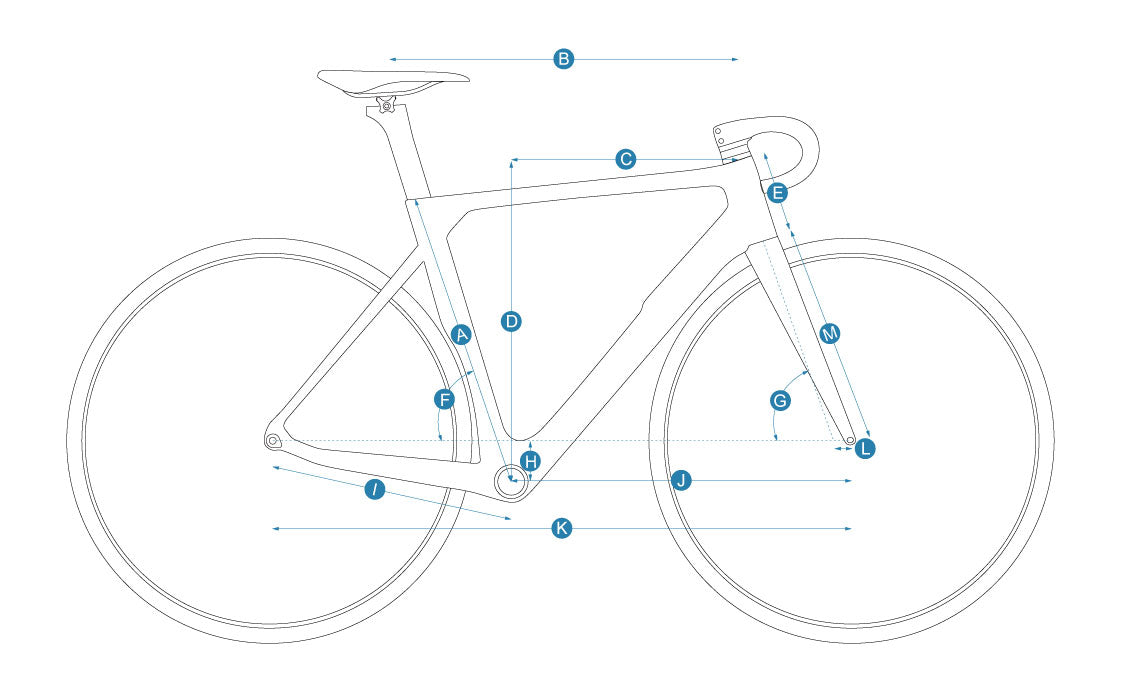

R12 Geometry

γ€€ γ€€
43
47
50
52
54
56
59
Size Recommendation
Rider Height
155cm-163cm
160cm-168cm
165cm-173cm
170cm-178cm
175cm-183cm
180cm-188cm
185cm-193cm
A
SEAT TUBE LENGTH(mm)
430
450
470
490
510
530
560
B
TOP TUBE LENGTH(mm)
505
516
528
540
552
567
582
C
REACH(mm)
370.6
375.9
378.6
381
386
388.2
393
D
STACK(mm)
501.6
505
520.9
536.9
550
567.2
581.6
E
HEAD TUBE LENGTH(mm)
100
100
115
130
145.7
160
175
F
SEAT TUBE ANGLE
75Β°
74.5Β°
74.0Β°
73.5Β°
73Β°
72.5Β°
72.0Β°
G
HEAD TUBE ANGLE
70.5Β°
71.5Β°
72Β°
72.5Β°
73Β°
73Β°
73Β°
H
BOTTOM BRACKET DROP(mm)
72
72
72
72
72
72
72
I
CHAIN STAY LENGTH(mm)
415
415
415
415
415
415
415
J
FRONT CENTER(mm)
572.9
570.7
574.2
577.1
583.5
588.9
598.1
K
WHEELBASE(mm)
977
974.8
978.3
981.3
987.6
993.2
1002.4
L
FORK RAKE(mm)
43
43
43
43
43
43
43
M
FORK LENGTH(mm)
371
371
371
371
371
371
371
4.9
Color
Color: Black
